Creo Advanced Framework

Creo Advance Framework

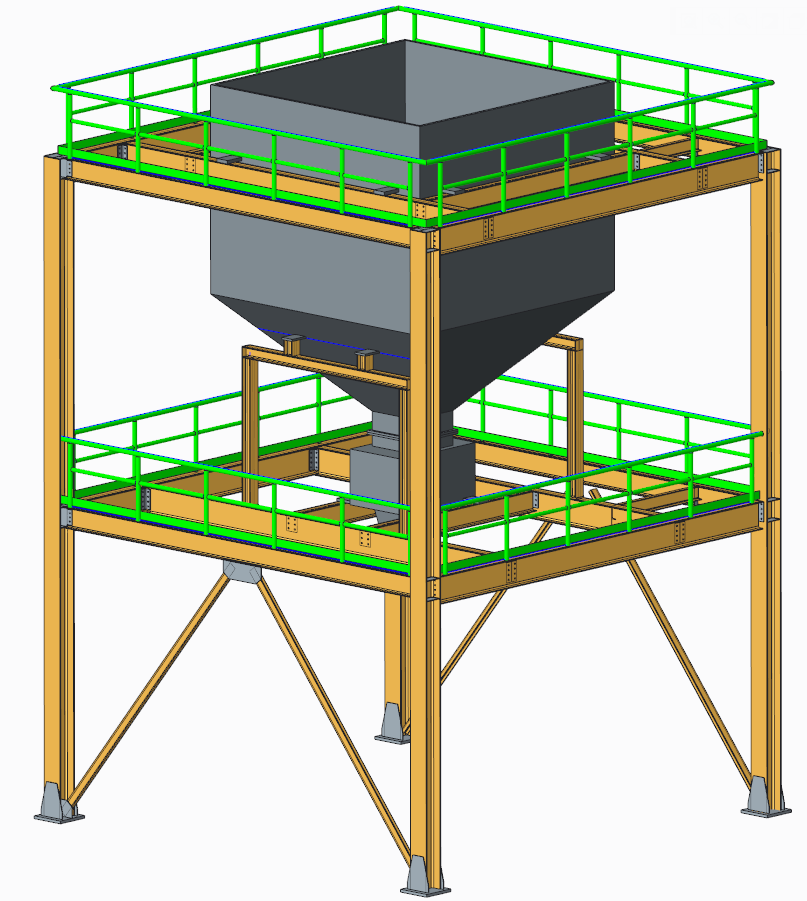

As essential foundations for a wide range of equipment, steel and aluminum frames are prevalent in virtually all industries. PTC Creo Advanced Framework Extension is tailored for machine designers and equipment manufactures to simplify and speed structure design. The intelligent component library and automatic deliverable creation of this structural design software make frame design up to 10 times faster than standard design techniques.

Features & Benefits

  • Simple concept-to-production process for designing any product containing constant section profiles
  • Enjoy an efficient transition to 3D CAD from 2D systems
  • Explore alternative designs via fast modifications using intuitive functions such as mouse drag, move, and rotate
  • Create comprehensive documentation automatically, including bills of materials and beam/assembly drawings
  • Realize up to a 10:1 productivity gain over standard CAD techniques for frame design
